Shacman F3000 6×4 Tractor Truck
380 / 400 / 430 HP
Technical Data
Full Specifications
| Brand & Model | Shacman Delong F3000 |
| Type | Tractor truck / semi-trailer prime mover |
| Drive | 6×4 (double rear-drive axles) |
| Engine options | Weichai WP10.380E22 / WP12.400E201 / WP12.430E201 |
| Power | 380 / 400 / 430 HP (279 / 294 / 316 kW) |
| Torque | 1600 / 1900 / 2100 N·m |
| Displacement | 9.7 L / 12 L |
| Gearbox | Fast 10JSD180 / 12JSD200T (10 or 12 speed) |
| Clutch | Φ430 mm single-plate dry |
| Wheelbase | 3175 + 1400 mm (standard tractor configuration) |
| Front axle | MAN 7.5 t |

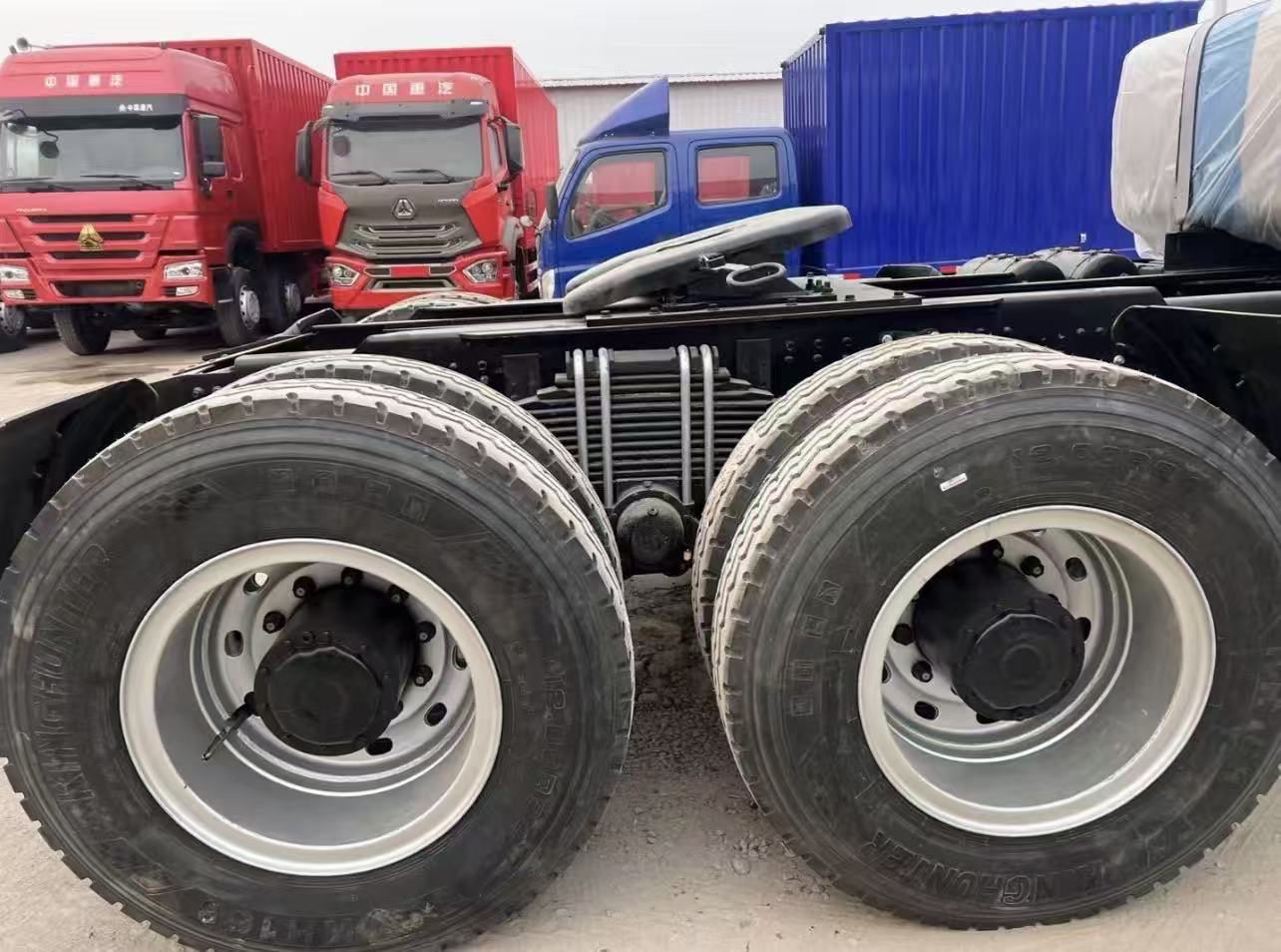

| Rear axle | MAN 13 t, two-stage reduction, ratio 4.266 / 4.769 |
| Tyres | 12.00R20 / 12.00R24 steel-wire (10 pieces) |
| Fuel tank | 400–600 L aluminum alloy |

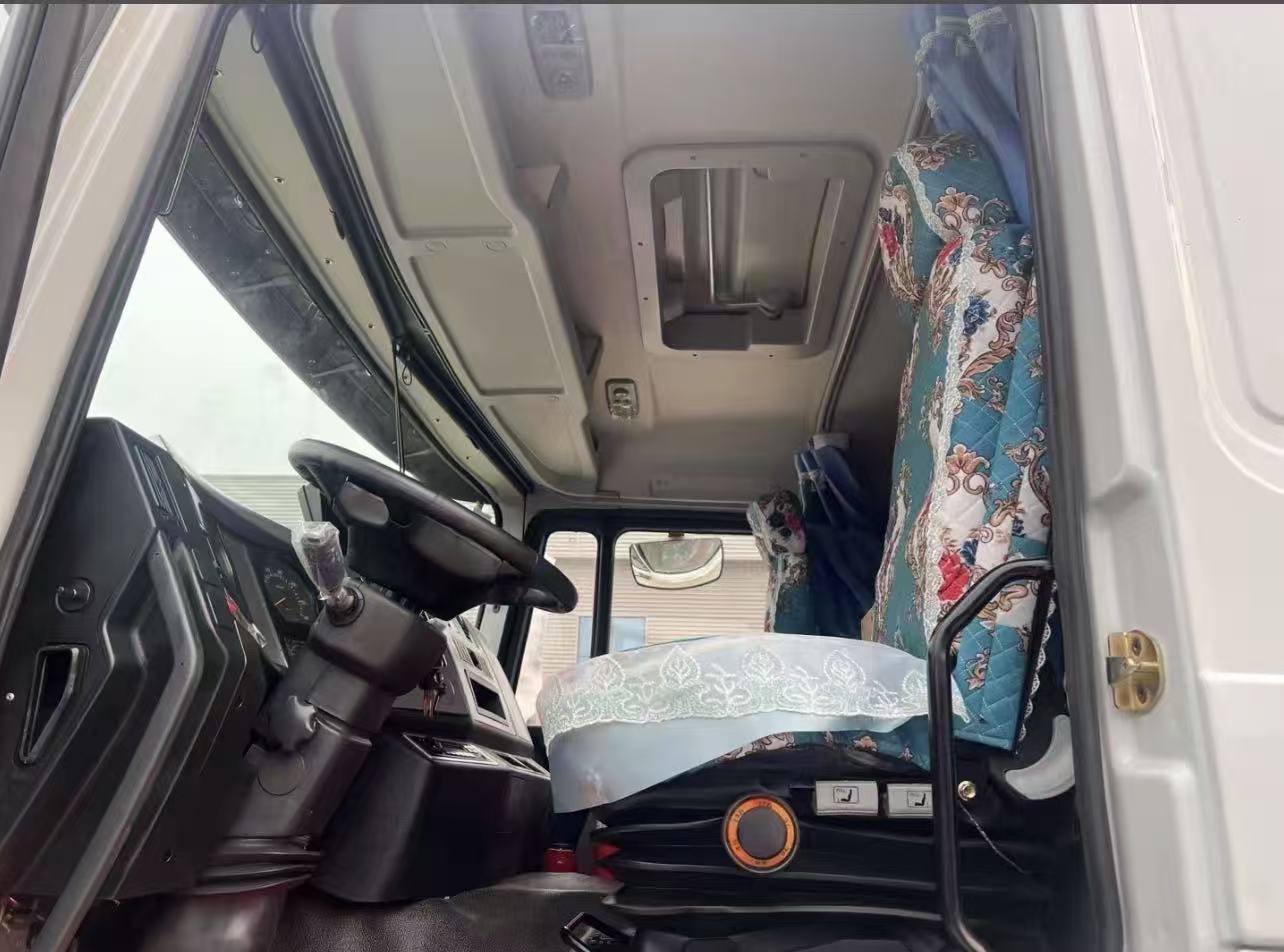

| Cab | F3000 MAN-technology cab with A/C and sleeper |
| Gross combination weight | Approx. 40–50 t (with trailer) |
Built To Order
Customization Options
Engine & Gearbox
Choose 380 / 400 / 430 HP Weichai engine paired with a 10- or 12-speed Fast gearbox to match your duty cycle.
Rear Axle Ratio
Two MAN rear axle ratios available — 4.266 for higher highway speed, or 4.769 for stronger pulling power.
Fuel Tank Size
400 L, 500 L or 600 L aluminum alloy fuel tank depending on route length and refueling availability.
Tyres
12.00R20 or 12.00R24 steel-wire tyres available depending on road surface and load profile.
Color
Truck color can be customized on request to match your fleet identity.
Steering
Left-hand or right-hand drive available on request.
Budget-Tailored Solutions
Special services and refurbishment scope tailored to your budget — we adjust which areas are refurbished based on your budget and the refurbishment facility's capabilities, to help control overall cost.
Tell us your requirements and budget — we'll build a solution to match.
Get in Touch
Request a Quote
Pricing is tailored to your chosen engine/gearbox spec, rear axle ratio, fuel tank, tyre size, refurbishment scope and destination port. Submit your details and our export team will respond within 24 hours.
