Shacman F3000 6×4 Dump Truck
380 / 400 / 430 HP
Specifications
Specifications
Brand & Model
Shacman Delong F3000
Type
Dump truck / tipper
Drive
6×4
Engine options
Weichai WP10.380E22 / WP12.400E201 / WP12.430E201
Power
380 / 400 / 430 HP (279 / 294 / 316 kW)
Torque
1600 / 1900 / 2100 N·m
Displacement
9.7 L / 12 L
Gearbox
Fast 10JSD180 / 12JSD200T (with QH50 PTO)
Clutch
Φ430 mm single-plate dry
Wheelbase
3775 + 1400 mm (heavy-load standard)
Front axle
MAN 9.5 t

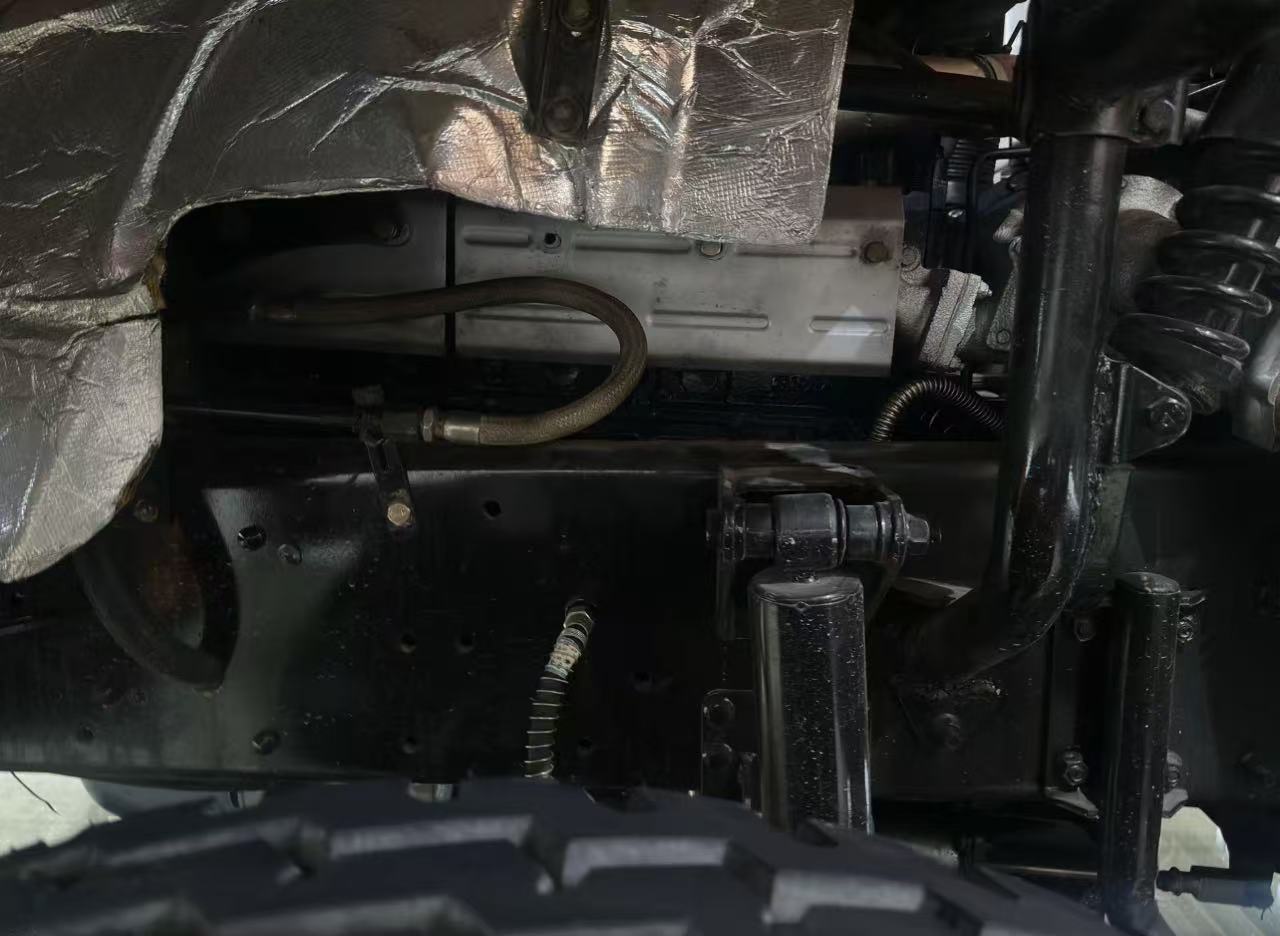

Rear axle
MAN 16 t, two-stage reduction, ratio 4.769 / 5.262 / 5.92

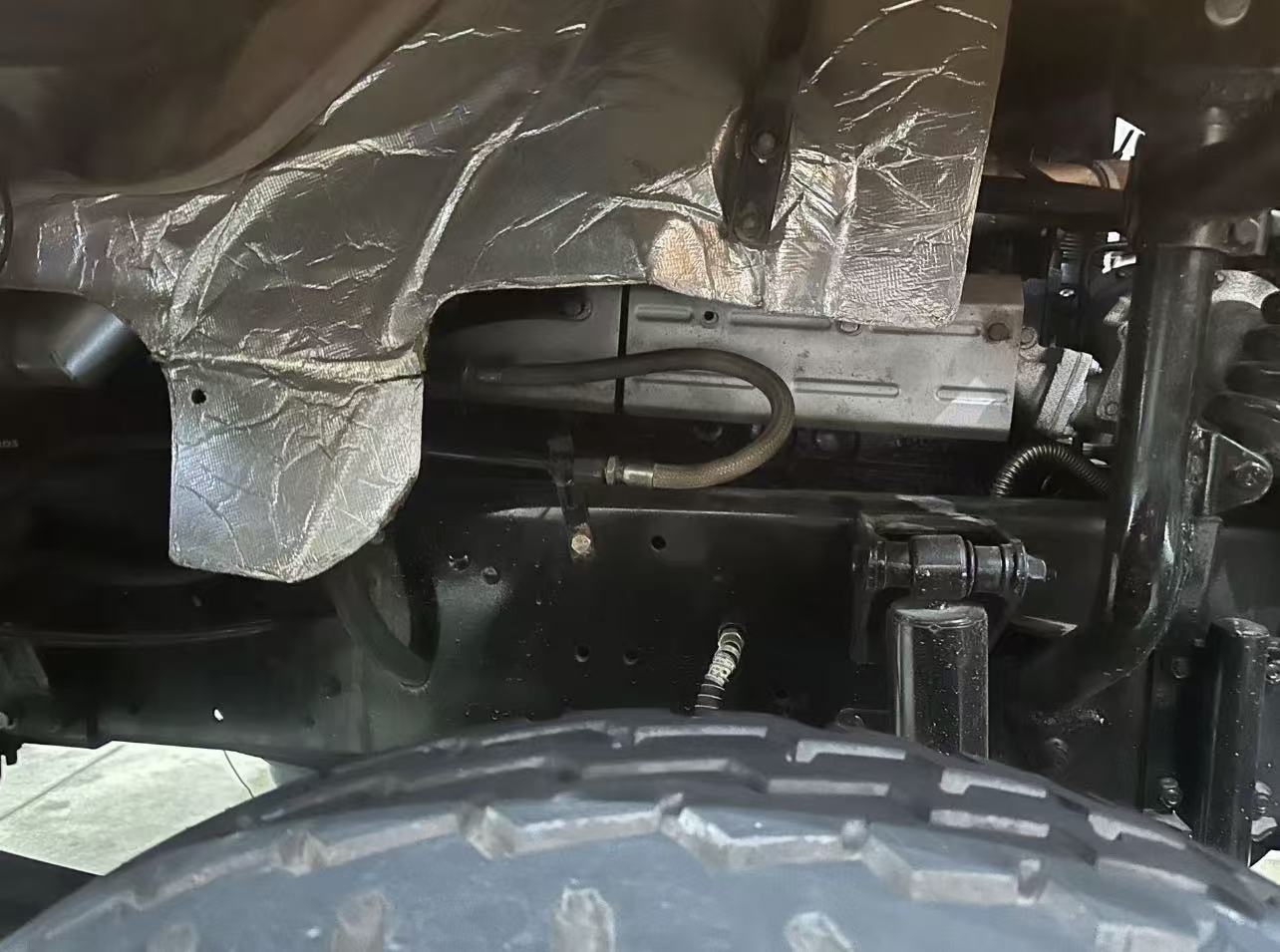

Frame
850 × 300 mm (8+7) reinforced
Tyres
12.00R20 steel-wire (10 pieces)
Fuel tank
400 L aluminum alloy

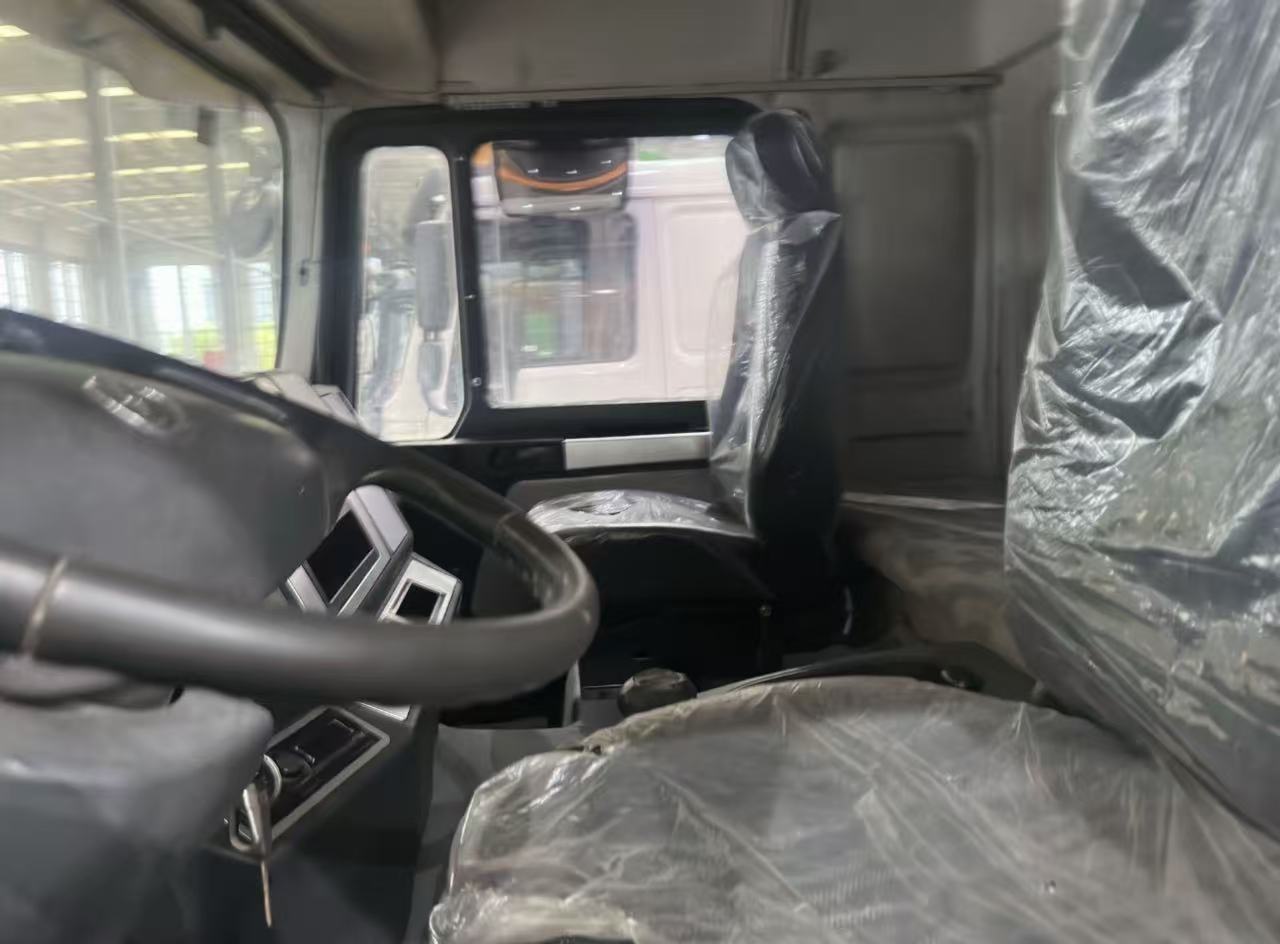

Cab
F3000 MAN-technology cab, flat-roof, with A/C
Payload
—
Gross Vehicle Weight (GVW)
—
Curb Weight (Empty)
—
Emission Standard
—
Power (kW / HP)
—
Engine Displacement (cc)
—
Cylinders
—
Air Conditioning
—
Cab Type & Sleeper
—
Condition
Professionally Refurbished — Export Ready
Origin
China (Export Specification)
Build Type
Build-to-Order
Standard & Optional
Equipment
Built To Order
Customization Options
Color
Truck color can be fully customized on request to match your fleet identity.

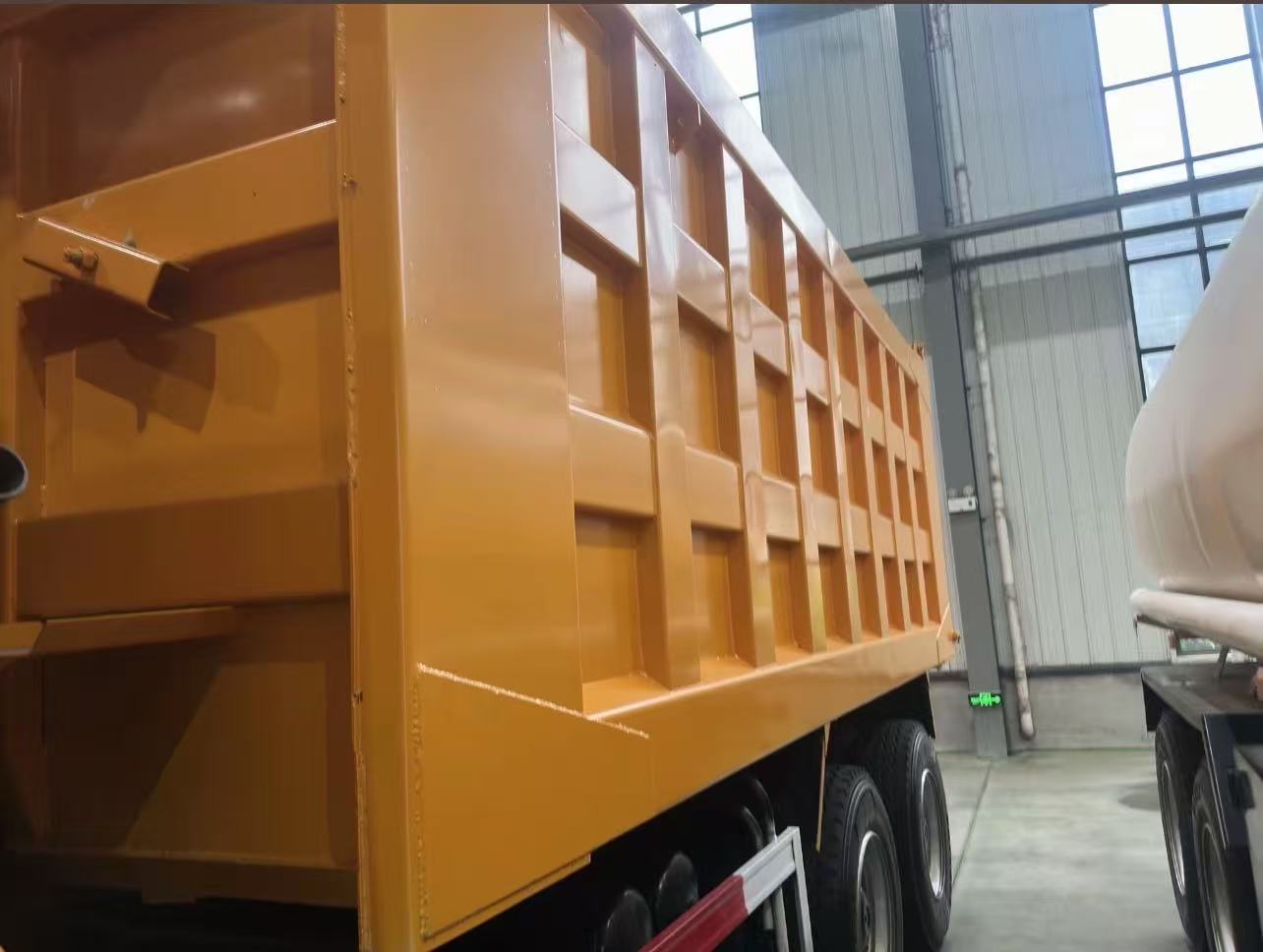

Cargo Box Shape
The shape and dimensions of the cargo compartment can be customized.
Steering
Left-hand or right-hand drive available on request.
Budget-Tailored Solutions
Refurbishment scope adapted to your budget — we adjust which areas of the truck are refurbished to control overall cost.
Tell us your requirements and budget — we'll build a solution to match.
Request a Quote
Pricing is tailored to your specification, refurbishment scope and destination port. Submit your details and our export team will respond within 24 hours.
